Z-EFG-R Electric Robotic Gripper
Giá:
15.771.140 đ

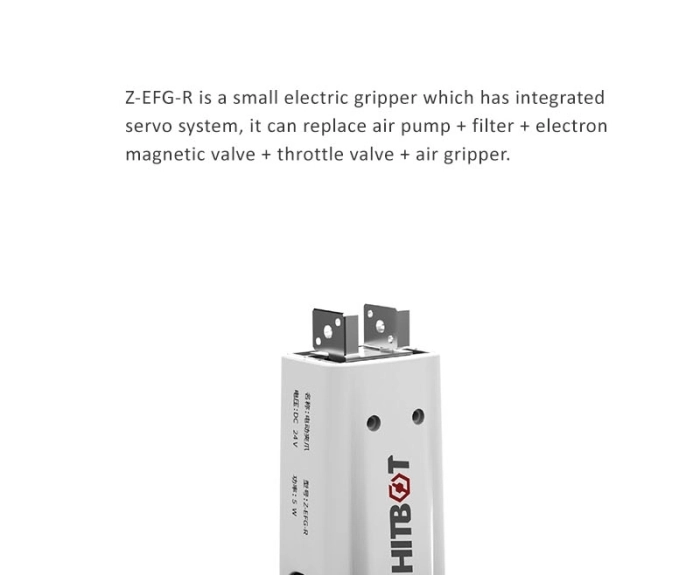

The Z-EFG-R is a robotic electric gripper with a built-in controller and multiple functions in one. Small in size, but powerful in function.
Z-EFG-R Electric Robotic Gripper
15.771.140 đ
Danh mục Electric Gripper
The Z-EFG-R is a robotic electric gripper with a built-in controller and multiple functions in one. Small in size, but powerful in function.
- A small but powerful servo motor electric gripper.
- Terminals can be replaced to meet different project requirements.
- Could pick up fragile and deformable objects, such as eggs, test tubes, rings, etc.
- Suitable for scenes without air sources (such as laboratories, and hospitals).
Product Parameters:
| Product Name: | Robotic Electric Gripper | |
| Item No.: | Z-EFG-R | |
| Total Stroke | 20mm | |
| Clamping Force | 80N | |
| Max Clamping Weight | ≤800g | |
| Repeated Positioning Accuracy | ± 0.02mm | |
| Impact/Vibration Resistance | 98m/s² | |
| Operating Temperature Range | 5~55℃ | |
| Humidity Range | RH35-80 (No Frost) | |
| Movement Method | 2 finger parallel | |
| Traveling Length Adjustable | Adjustable | |
| Clamping Force Adjustable | Adjustable | |
| Weight | 0.5kg | |
| Dimension (L*W*H) | 68*68*132.7mm | |
| Controller Location Type | Built-in | |
| Power | 5W | |
| Rated Voltage | 24V | |
| Peak Current | 1A | |
Product Description:
